제품 상세 정보:
|
| 냉각방식: | 공기 냉각 | 방사방식: | 공군 |
|---|---|---|---|
| 주변 온도/습도: | -20~60°C | 냉각력: | 35와트 |
| 입력 전원: | 50W | 난방능력: | 85W |
| 뜨겁거나 찬 쪽 팬 전류: | 0.24/0.20 a | TEM 공칭/시동 전류: | 3.9/5.0a |
| 공칭/최대 전압: | 24/30VDC | 전반적인 차원: | 120mm x 102mm x 143mm |
| 무게: | 1.3kg | 생활 시간: | >=70,000시간 |
| 용인: | 10% |

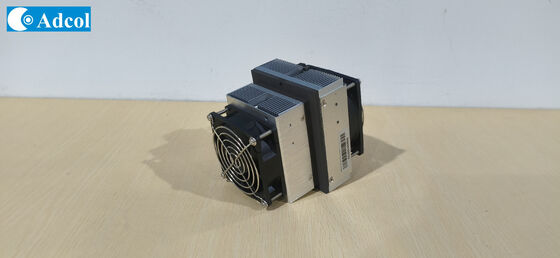

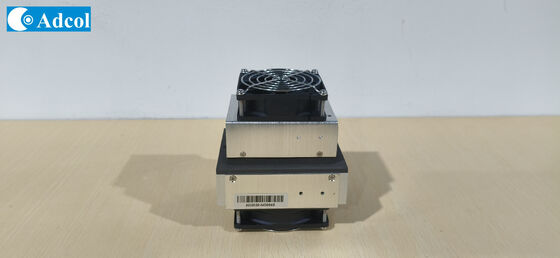

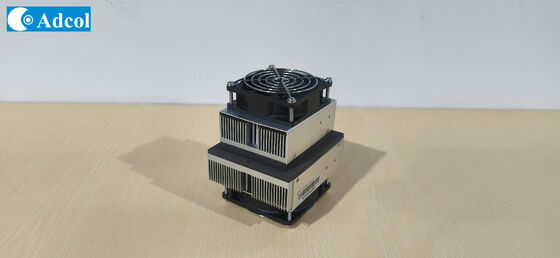

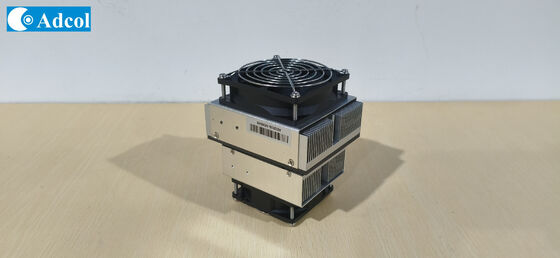

ATA035-12VDC Air to air thermoelectric Cooler Assembly 1.Product Introduction The ATA035-12 TE Cooler is an air-to-air thermoelectric cooling module with 12V DC input and 35W cooling power. It adopts dual fans for cold and hot sides. Operating temperature ranges from -10 to 55℃, weight 1.1kg. No refrigerant required, compact and easy to install, ideal for equipment temperature control and lab cooling. 2.Features 15W capacity rated at ΔT = 0ºC,Tambient = 30°C Refrigerant free
