제품 상세 정보:
|
| 냉각 전력 Qmax: | 200W | 입력 전압: | 48VDC |
|---|---|---|---|
| 실행 중류: | 4.1A | 현재 시작: | 5.3A |
| 공칭 V: | 48VDC | 전원 입력: | 200W |

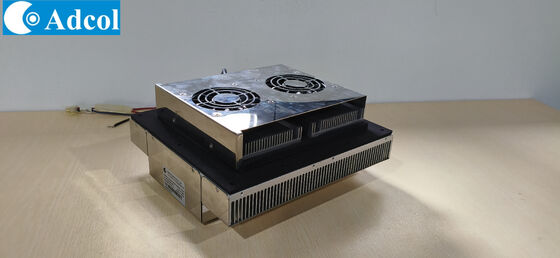

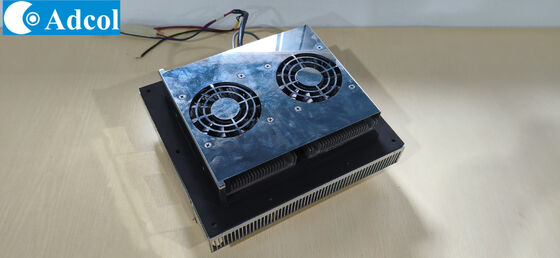

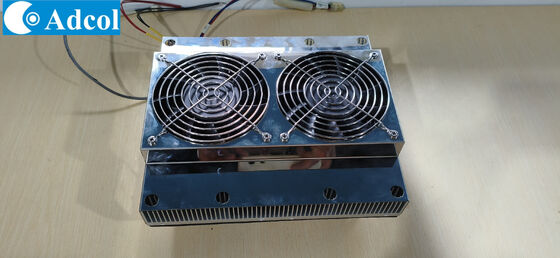

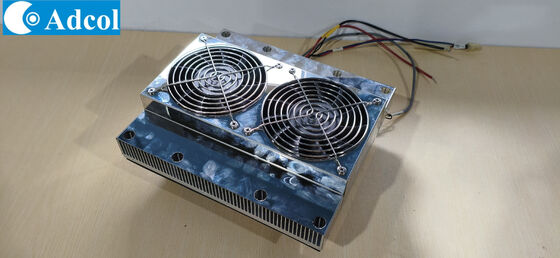

200W 48VDCAir To Air Thermoelectric Assembly Cooler
1.Product Description
The ATA Power Cool Series is an Air-to-Air Thermoelectric Assembly (TEA) that uses impingement
flow to transfer heat. It offers dependable, compact performance by cooling objects via convection.
Heat is absorbed and dissipated thru high density heat exchangers equipped with air ducted shrouds
and brand name fans. The heat pumping action is created by thermoelectric modules, which are custom
designed to achieve a high coefficient of performance (COP).
2.Features
- Compact design
- Reliable solid-state operation
- DC operaton
- RoHS compliant
3.Characteristics
- Application : Outdoor Batter Cabinets
- Meet RoHs & WEEE
- EMC meet class B
- Safety: IEC60950-1/EN
- Anti-Corrosion: IEC68-2-30/52
4.Design drawing
