제품 상세 정보:
|
| p/n: | ATL200-24VDC | 냉각 방법: | 유동적 냉기 |
|---|---|---|---|
| 방사 방법: | 공군 | 주변 온도/습도: | -20 ~ 60 ° C |
| 냉각 용량: | 200W | 입력 전원: | 24VDC |
| 정격 소비 전류: | 14.0A +/- 5% | 시작 전류: | 17.2A +/- 5% |
| 작동하는 습도: | 80% 미만 | 과열 보호: | 아니요 |
| 팬 입력 전압: | 24VDC | 교환기의 재질: | 단단한 산화가 있는 Al |
| 소음: | 48dB | 생명 시간: | >=70,000시간 |
| 무게: | 6.5kg |
Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.
The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

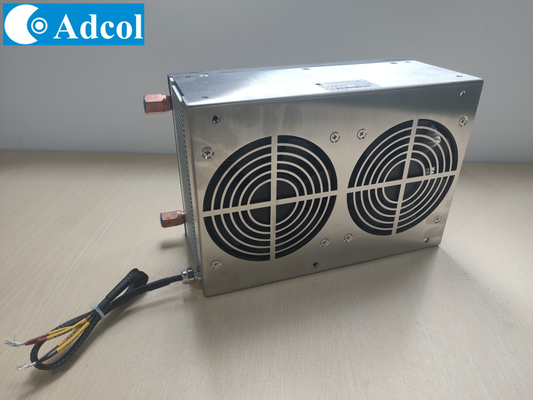

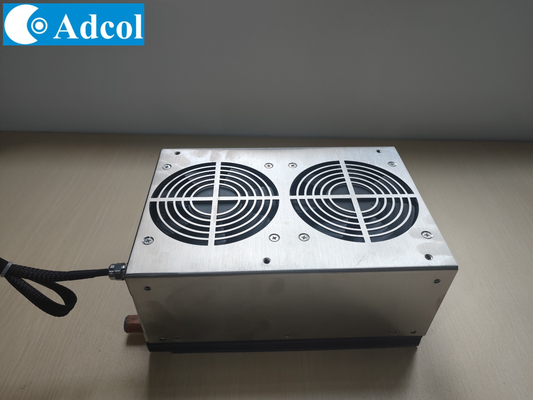

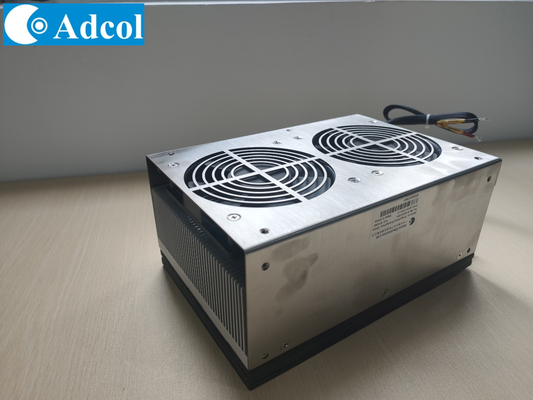

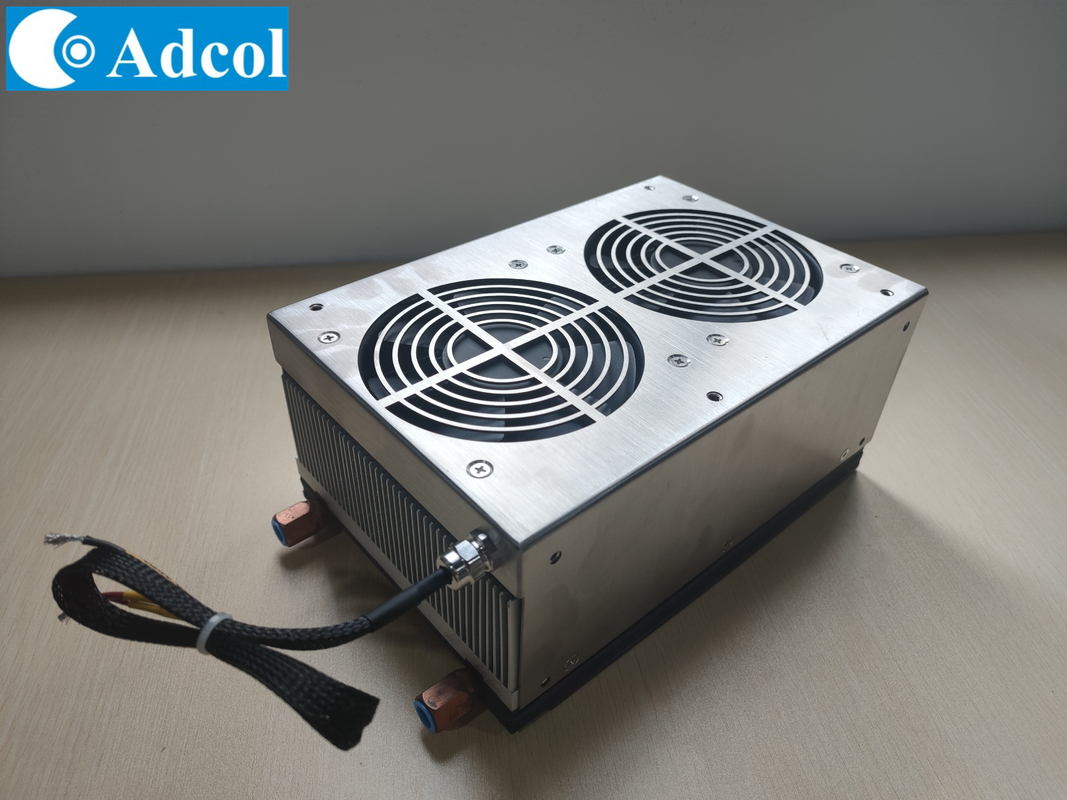

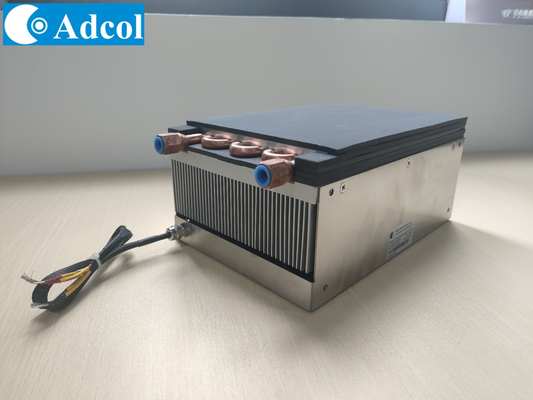

ATL200-24VDC Air to Liquid thermoelectric Cooler Assembly
1.Product Introduction
(1).Thermoelectric air liquid is designed for cooling objects via liquid to transfer heat.
Heat is absorbed through a liquidexchanger and dissipated by high density heatsink with fan.
(2).The ATL200-24 Thermoelectric air to Liquid aredesigned for electronic liquid cooling.
They cancool to 72Fbelow ambient or maintain ambienttemperatures while removing up
to 200W.
(3).Also it is virtually maintenance-free, and can bemounted in any orientation, offering design
flexibility with solid-state reliability
2.Features
(1)200W capacity rated at ΔT = 0°C,Tambient= 30°℃
(2)Refrigerant free-environmentally friendly
(3)Wide operating temperature range of -20°C to +60°℃
(4)Shift between heating and cooling without using a heater
(5)Reduced noise and vibration with no moving parts
3.Application
(1)Analytical instrument
(2)Medical diagnostics
(3)Industrial laser
(4)Medical laser
