제품 상세 정보:
|
| p/n: | ATA050-24VDC | 냉각방식: | 공기 쿨 |
|---|---|---|---|
| 방사 방법: | 공군 공군 | 주변 온도/습도: | -10~48°C |
| 냉각 용량: | 50W | 입력 전원: | 95W |
| 가열 용량: | 135W | 팬, 차가운 쪽: | 9215,24VDC |
| 팬, 뜨거운면: | 12025,24VDC IP67 | 핫/콜드 사이드 팬 전류: | 0.25/0.18 A |
| TEM 공칭/시작 전류: | 4.0/4.6A | 공칭/최대 전압: | 24/30 VDC |
| 생명 시간: | >=70,000시간 | 용인: | 10% |
| 무게: | 3.1kg |
Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.
The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

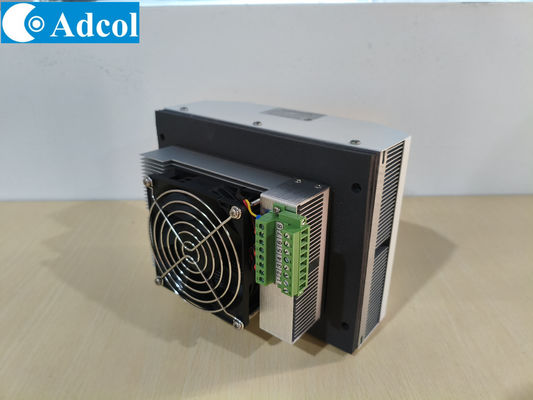

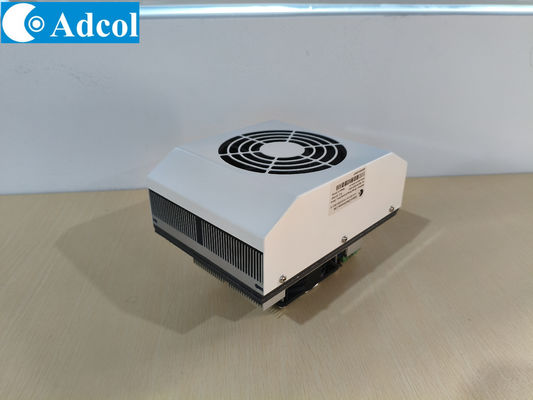

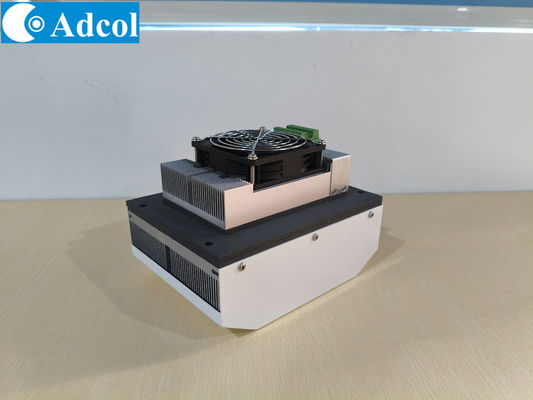

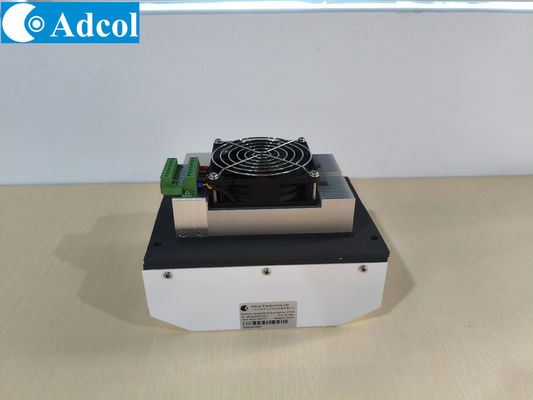

ATA050-24VDC Air to air thermoelectric Cooler Assembly
2.Introduction
The ATA050-24VDC Thermoelectric air conditioner is designed forelectronic cabinets and
environmental chambers.lt canmaintain ambient temperatures while removing up to 50W.
This model is available in 12VDC configurations. This airconditioner is virtually maintenance-free,
with no filtersambient to change, and it can be mounted in any orientation.offering design flexibility
with solid-state reliability.
3.Features
4.Application
5.Performance Curve
6.Design drawing
